NX 4 / 8 / 12

VIEW ALARM MEMORY:

Step 1 Press the [*].

Step 2 Press the [3] key.

Step 3 The ALARM MEMORY feature will flash those zones that created alarms and will light steady those zones that were bypassed during the last alarm.

Step 4 Press the [#] key to exit Alarm Memory.

TURNING THE DOOR CHIME ON AND OFF:

The door chime is turned on or off by pressing the [CHIME] key while the system is in the disarmed state.

If the chime is on, the chime light will be illuminated. If the chime is off, the chime light will be off.

Each press of the [CHIME] key will toggle the chime feature on/off and produce a momentary ding-dong sound.

This function is used to reset Smoke Detectors, Zone Troubles, and Zone Tampers.

Step 1 Disarm the system if not disarmed.

Step 2 Press the [*] key.

Step 3 Press the [7] key.

Reset has now been performed.

Step 4 If the code pad begins beeping, the reset did not execute properly. Enter your [USER CODE] to silence the code pad. Wait a few minutes and repeat step 2 to attempt another reset. If the code pad still beeps after repeated attempts, please contact your installer.

NOTE: You must hold these keys for 2 seconds to activate these functions.

Your system may not be programmed for these activation keys (see page 1). You should press these keys only in an emergency situation that requires response by emergency personnel.

If your system is programmed for these functions, the following reports can be sent.

Fire Key: This key can activate the fire alarm when pressed for two seconds. If your system is connected to a monitoring center, an emergency report could be sent to that center

Auxiliary Emergency Key: This key can activate the auxiliary alarm when pressed for two seconds. If your system is connected to a monitoring center, an emergency report could be sent to that center.

Police (Panic/Hold-Up) Key: This key can sound a local audible alarm when pressed for two seconds. If your system is connected to a monitoring center, an emergency report could be transmitted to that center.

NOTE: Some Panic/Hold-Up alarms are programmed to be silent at the protected site while reporting an alarm to the monitoring center. Check with your installation company to determine how your security system will respond to the Panic/Hold-Up activation.

SET SYSTEM DATE:

Step 1 Press the [*] [9] [6].

Step 2 Enter the [Master Code].

Step 3 Enter the “Day of Week”

1 = Sunday

2 = Monday

3 = Tuesday

4 = Wednesday

5 = Thursday

6 = Friday

7 = Saturday

Step 4 Enter the “Month Code”. This must always be two (2) digits.

01 = January 05 = May 09 = September
02 = February 06 = June 10 = October
03 = March 07 = July 11 = November
04 = April 08 = August 12 = December

Step 5 Enter the “Day Code”. This must always be two (2) digits. Example: The 5th would be entered as [0] [5].

Step 6 Enter the last two digits of the “Year Code”. Example: For 2000 enter [0] [0].

SETTING THE SYSTEM CLOCK:

Step 1 Press the [*] key.

Step 2 Press the [9] [7] keys.

Step 3 Enter the [Master Code]

Step 4 Enter the “hour code” which must be two (2) digits. Note: The clock is a 24 hour clock.

Example: 12.00 am would be entered as [0] [0], 7.00 am would be entered as [0] [7], and 5.00 pm would be entered as [1] [7].

Step 5 Enter the “minutes code” which must be two (2) digits. Example: 7 minutes after would be entered [0] [7].

TEST FUNCTION:-Optional

If programmed, this function will perform a battery test, communicator test, and a siren test. No alarms will be sent, and no reports will be sent unless the communicator test is enabled.

Step 1 Press the [*] key.

Step 2 Press [4] [4]. The test will be performed as programmed.

Step 3 If the siren test is performed, enter a user code to silence the siren. No alarms will be sent and no reports will be sent unless a communicator test is performed, at which time a test signal will be sent.

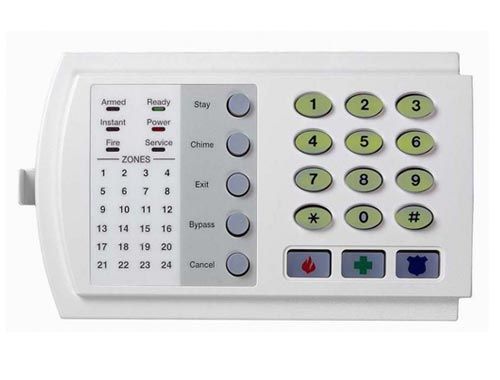

Understanding the Lights:

Armed Light

The armed light is “on” when the system is armed. The armed light is “off” when it is disarmed. The armed light will flash when there has been an alarm during the previous arm cycle.

Bypass Light

The bypass light is “on” when any zone is bypassed. The zone(s) that is bypassed will also be illuminated. If the bypass light is “off”, no zones are bypassed.

Chime Light

The chime light is “on” when the chime feature is “on”; “off” otherwise.

Exit Light

The exit light is “on” during the exit delay. Please note that the light will flash during the last 10 seconds of the exit delay as a warning that the time is running out. (The user may want to restart the exit delay if the exit light is flashing in order to prevent an alarm. The user may then press the [Exit] key to restart the exit delay before the delay expires.)

Fire Light

A steady fire light means a fire zone has been faulted. A rapidly flashing fire light means that a fire zone is in a trouble condition.

On Light

The on light is “on” when the system is armed. The on light is “off” when it is disarmed.

Partial Light

The partial light is “on” when the system is armed in the Partial Mode. All non bypassed zones will be delayed and follow the Partial delay time. When armed in Partial Mode, the Arm, On, and Bypass light will also be “on”.

Power Light

The power light is on if the primary power is on. The power light will flash if the system has a low battery condition.

Ready Light

The ready light is “on” when the system is ready to arm and “flashes” if ready to force arm. The ready light is “off” when the system is not ready to arm because of a zone(s) being faulted.

Zone Light

The zone lights are “off” when everything is normal. A zone light will be “on” if the zone has been bypassed. If a zone light is “flashing”, that zone is in alarm or has been faulted. If a zone light is “flashing” rapidly, it means that the zone is in a trouble condition. Trouble conditions are:

Tamper

Hardware

Wireless Sensor Low Battery

Wireless Sensor Loss of Supervision

(A combination of Alarm/Fault and Tamper/Trouble will produce a rapid “flashing” light for a short period of time, followed by a slow flashing” light.)

Service Menu:

The service light will be “on” if the security system requires service. If the service light is “on”, press the [*] key followed by the [2] key to determine the service condition. One or more zone lights will illuminate indicating what service(s) is required. Below is a listing of what each light means in a service condition.

CODE PAD CONTROL TONES:(BEEPS)

Beeps for all key presses.

Sounds a continuous tone during the entry delay time.

Pulses when a day zone is violated while the system is disarmed.

Pulses when a fire zone has a trouble condition.

Beeps 3 times for trying to arm with the “Ready” light off, if “Force Arming” has not been selected.

Beeps for 1 second or emits a “ding-dong” sound for the “Chime” feature.

Beeps during an exit delay; beeps rapidly for the last 10 seconds of an exit delay; and beeps 1 Second at the end of the exit delay.

Pulses when the armed status changes and the AC power is off.

Pulses when the armed status changes and any zone(s) is bypassed.

Pulses when the armed status changes and a low battery is detected.

Pulses when the armed status changes and a tamper condition is detected. Beeps to indicate Telephone line cut, if selected.

Pulses when one or more of the following conditions are detected: zone or box tamper, low battery, ac power fail, or expander trouble.

Entering a valid [User code] will silence the code pad sounder when it is pulsing.

NOTE: Default master code is USER 1 with default code 1234. Any user code can be assigned as a master code. All codes are four digits.

Step 1 Your system must be in the Disarmed state to change user codes.

Step 2 Press the [*] [5] keys.

Step 3 Enter a [Master Code]

Step 4 The ready light will flash.

Step 5 Enter the 2 digit “user number” (always enter 2 digit such as [0]-[3] for user 3, or [5]-[2] for user 52).

Step 6 Enter the new four (4) or six (6) digit user code.

NOTE: To delete a user code, enter [Chime]-[Chime]-[Chime]-[Chime] for a 4-digit code, or [Chime]-[Chime]-[Chime]-[Chime]-[Chime]-[Chime] for a 6-digit code.

Step 7 The ready light will flash indicating you are back at Step 5 above. If the code is rejected, the sounder will beep 3 times.

Step 8 If another “user code” needs to be programmed, return to Step 6.

Step 9 Press the [#] key while the ready light is flashing to exit the User Code Programming Mode.

ASSIGNING USER CODE AUTHORITY LEVELS:

Assign authority levels to users by following the steps below. Assign user codes before assigning authority levels.

Step 1 Press the [*][6] keys.

Step 2 Enter a [Master Code].

NOTE: Someone changing the authority of another person can only add or remove authorisation if they have access to that same authority level.

Step 3 The ready light will flash.

Step 4 Enter the 2 digit “user number” to be assigned authority (The ready light is constant and the partial light will flash).

Step 5 Lights illuminated indicate the authority levels assigned to this code. An explanation of the lights is listed below. You may toggle (turn on/off) the authority level by pressing the number for that authority level.

Step 6 Press the [*][*]. This returns you to Step 3.

At this point you may enter another user number to assign authority level. Repeat Steps 4 – 6 until you have assigned authority levels to all user numbers.

Step 7 Press the [#] key to exit the Assigning Authority Level Program.
